PRODUCT
DESCRIPTION:
Terocore®
1015 is a high strength, medium
viscosity, exothermically expanding, epoxy based structural foam used
to impart
increased stiffness to E-coated metal cavities. When mixed at a 2 to 1
ratio,
the two-part structural foam cures at room temperature to form a gray,
rigid
foam. The fully cured epoxy is
resistant to environmental elements such as humidity, salt spray, heat
and
compressive and torsional forces.
TYPICAL
APPLICATIONS:
Terocore®
1015
should be applied to clean automotive E-coated substrates.
Ideal for reinforcing body cavities,
structural joints and other automotive applications where a high
modulus low
density material is desired. The

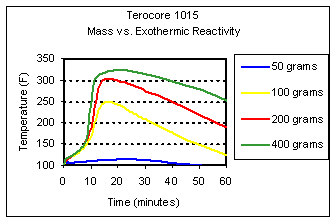

material requires a minimum mass of 200 cc to cure rapidly and expand
to its
maximum potential.
PROPERTIES
OF UNCURED MATERIAL:
Resin
Typical
|
Chemical
Type Appearance Specific
Gravity @ 25˚C Viscosity @
25˚C (cP) Flash Point
(TCC), |
Value Epoxy Dark Gray paste 0.81 200,000 > 200˚ F |
Range 0.76 to 0.85 180,000 to
220,000 |
Hardner
Typical
|
Chemical
Type Appearance Specific
Gravity @ 25˚C Viscosity @
25˚C (cP) Flash Point
(TCC), |
Value Amine Off-White
paste 0.65 280,000 > 200˚ F |
Range 0.61 to 0.69 250,000 to
310,000 |
Uncured
Mixture
Typical
|
Appearance Specific
Gravity @ 25˚C Mix Ratio
(1015AA:1015B
by weight
by volume |
Value Gray paste 0.77 2.6 to 1 2 to 1 |
Range 0.75 to 0.79 1.8-2.4 to 1 |
TYPICAL
CURING PERFORMANCE
Cure speed
|
Open time in
static mixer
at 70F (21.1˚C)
at 130F (54.4˚C) Expansion % |
15 minutes 8 minutes 40 to 60% |
TYPICAL
PROPERTIES OF CURED MATERIAL:
|
Appearance Specific
Gravity @ 25˚C Compression
Strength (Mpa) Compression
Modulus (Mpa) Lap Shear
Strength (Mpa) Poisson’s
Ratio |
Gray solid 0.52 20 1000 5 0.23 |
PERFORMANCE
PROPERTIES @ 2 to 1 Mix Ratio
Compression
Strength (Mpa)
|
Initial (Full Cure),
tested at 25˚C Initial, tested at –29˚C Initial, tested at 79˚C Condensing Humidity, 500
hrs Heat Aged, 500 hrs at 79C Salt Spray, 500 hrs B117 |
21 20 10 29 28 27 |
Compression
Modulus (Mpa)
|
Initial (Full Cure),
tested at 25˚C Initial, tested at –29˚C Initial, tested at 79˚C Condensing Humidity, 500
hrs Heat Aged, 500 hrs at 79C Salt Spray, 500 hrs B117 |
1100 n/a n/a 1142 1113 1263 |
75 x75 x
100mm E-Coated Box
Condition
and peel can. Rate failure mode.
|
Initial (Full Cure),
tested at 25˚C Initial, tested at –29˚C Initial, tested at 79˚C Condensing Humidity, 500
hrs Heat Aged, 500 hrs at 79C Salt Spray, 500 hrs B117 |
Thin film
cohesive Thin film
cohesive Cohesive Cohesive Cohesive Cohesive |
DIRECTIONS
FOR USE:
1.
Material
should be preheated to 40 – 50 C prior to application in
order to obtain maximum expansion of the curing product.
2.
Use gloves
to minimize skin contact. Use caution when
utilizing cleaning solvents.
3.
Substrate
should be clean and free of oil, grease or dirt. Clean
substrate with suitable cleaner.
4.
Dual
Cartridges: To use
simply snap the dual cartridge assembly together. Remove
cartridge nozzle plugs and save to reseal cartridge if
needed. Next, place static mixing nozzle over threaded nozzle end and
tighten
down with the nozzle retaining nut supplied with the kit.
Load cartridge assembly into either a
pneumatic or manual dual cartridge dispensing gun.
Dispense material until material is thoroughly mixed and uniform
gray
in color. Material is now ready for
dispensing use. When dispensing is completed, remove static mixing
element and
discard. Place nozzle end plugs back
into ends of the cartridge and remove from the dispensing gun.
5.
Bulk
materials: Materials supplied
in 5, 55 or 300 gallon containers require dispensing equipment to
properly
pump, meter and mix the material.
Contact your local pump company to verify performance parameters.
6.
Make sure
that the cavity or section to be filled is properly
sealed so that material will not leak.
Heat tape, duct tape, foam and
modeling clay are commonly used to seal off large openings in sheet
metal.
7.
If cavity
section requires more than one cartridge to fill make
sure that sufficient number are preheated and ready for filling. It is recommended that the entire fill be
conducted as quickly as possible.
8.
Large masses
of mixed material will create heat when curing and
metal surface temperatures may exceed 150 F.
STORAGE:
Frost
Sensitive:
No
Storage
Temperature:
<
35°C (95°F)
Shelf Life:
90
days @ temperatures not to exceed
35°C (95°F).
PACKAGING:
Material is available in 2 part side-by-side cartridges, 5 gallon pails, 55 gallon drums and 300 gallon magna totes.
Part
specific packaging is designed for
each application.
HAZARD INDICATION/SAFETY
RECOMMENDATIONS/SHIPPING REGULATIONS:
Refer to
Material Safety Data Sheet.
Henkel
Surface
Technologies
32100
Stephenson Highway
Madison
Heights, MI 48071
Telephone:
248-583-9300
Fax:
248-583-2976
"The
information presented herein is our interpretation of
certain test results and field experience to date.
This information is not to be taken as warranty or
representation
for which we assume legal responsibility, nor as permission or
recommendation to
practice any patented invention without a license.
It is offered solely for your consideration, investigation and
verification." © Henkel
Corporation.
